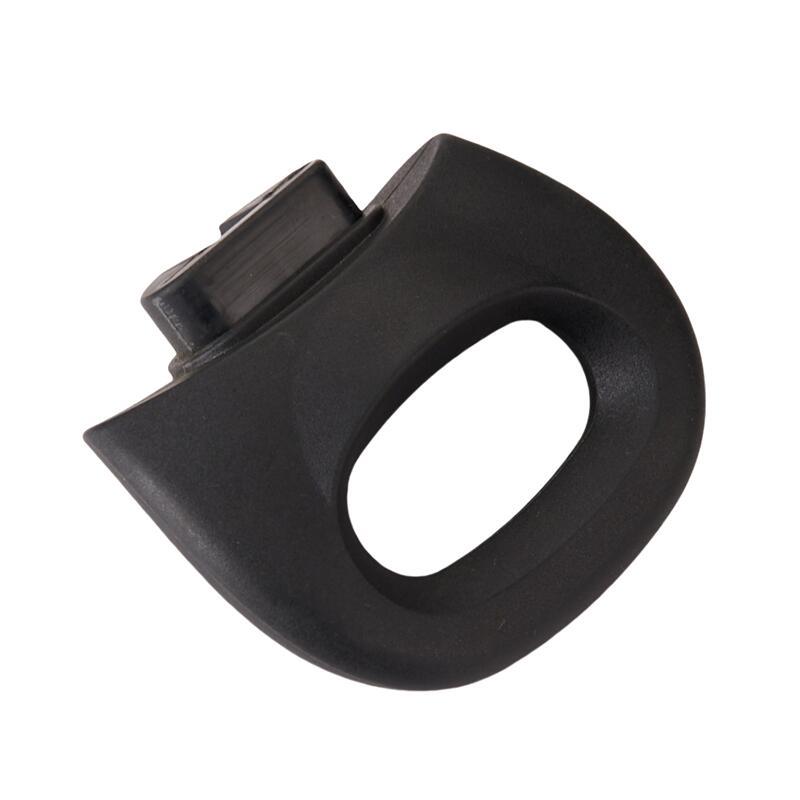

Bakelite Side handle for pots

Specifications

• SIZE: 100mm–150mm
• WEIGHT: 100g–160g
• MATERIALS: Phenolic Resin (Bakelite), PF 42 grade + iron or AISI 304 SS bracket
• APPLICATION: Cookware side handles — stockpot, wok, deep pot, casserole, braiser
• Bracket Type: Ductile iron (standard), AISI 201 SS (premium), iron with electroplate coating
• Mounting: Rivet mount, screw mount, or weld mount
• Load Capacity: ≥80 kg per handle pair (5× safety factor)
• Color: Black, brown, grey; custom RAL/Pantone available
• Heat Resistance: 180°C continuous; peak 220°C

Why Large-Capacity Cookware Demands Dual-Material Side Handles

A Bakelite side handle for pots on a 15-liter stockpot faces a specific structural problem: every lift generates a cantilever bending moment at the bracket junction. A filled 15-liter stockpot weighs 17+ kg, and that load concentrates at the Bakelite-to-bracket interface.

Single-material Bakelite handles (Bakelite molded directly to a metal plate) fail here. After 500–1,000 lift cycles, the repeated tensile stress at the Bakelite-to-metal junction causes micro-cracking. The dual-material design solves this by giving each material a specific structural role:

• Steel bracket: Carries the tensile/compressive load from lifting — it is the structural spine
• Bakelite grip: Provides heat insulation and ergonomic grip surface — it sees no structural load

The 5-Point Side Handle Engineering Checklist

1. Load Capacity — Demand ≥80 kg per Pair

For large-capacity stockpot and wok, each handle must support ≥40 kg. Single-material Bakelite handles typically fail at 30–40 kg per pair under dual-handle loading. We engineer dual-material with steel bracket bearing all tensile load.

2. Mounting Method — Match to Your Pot Construction

We offer three mounting methods; specify your assembly process at inquiry:

• Rivet mount — permanent and vibration-resistant; the strongest attachment for commercial cookware
• Screw mount — field-replaceable; preferred by OEM brands for warranty serviceability
• Weld mount — for SS pot bodies only; spot-weld creates flush appearance

3. Bracket Material — Iron or SS, Reject Zinc-Plated Steel

Zinc-plated brackets corrode in humid coastal kitchens. We specify ductile iron (standard) or AISI 304 SS (premium) with anti-corrosion coating. Zinc-plated steel is not acceptable for commercial kitchen environments.

4. Wok Torsional Rigidity — Demand Gusset-Reinforced Bracket

Woks pivot on eccentric weight distribution. We engineer gusset-reinforced steel bracket that increases torsional rigidity by 40% vs. standard flat bracket — preventing handle spin during one-handed wok operation.

5. Batch-Specific Compliance

Our LFGB and FDA test reports are per production batch. Specifically: request the test report for the specific production batch you will receive.

Dual-Material vs. Single-Material: Performance Comparison

Consequently: the dual-material design is not a premium feature — it is the only engineering-correct solution for large-capacity cookware side handles.
