Shenzhen Birss Houseware Co.,ltd

We are a well-known manufacturer and supplier of cookware bakelite handles in China

Bakelite Cookware Handle | Birss Houseware

Bakelite Handle Manufacturer/

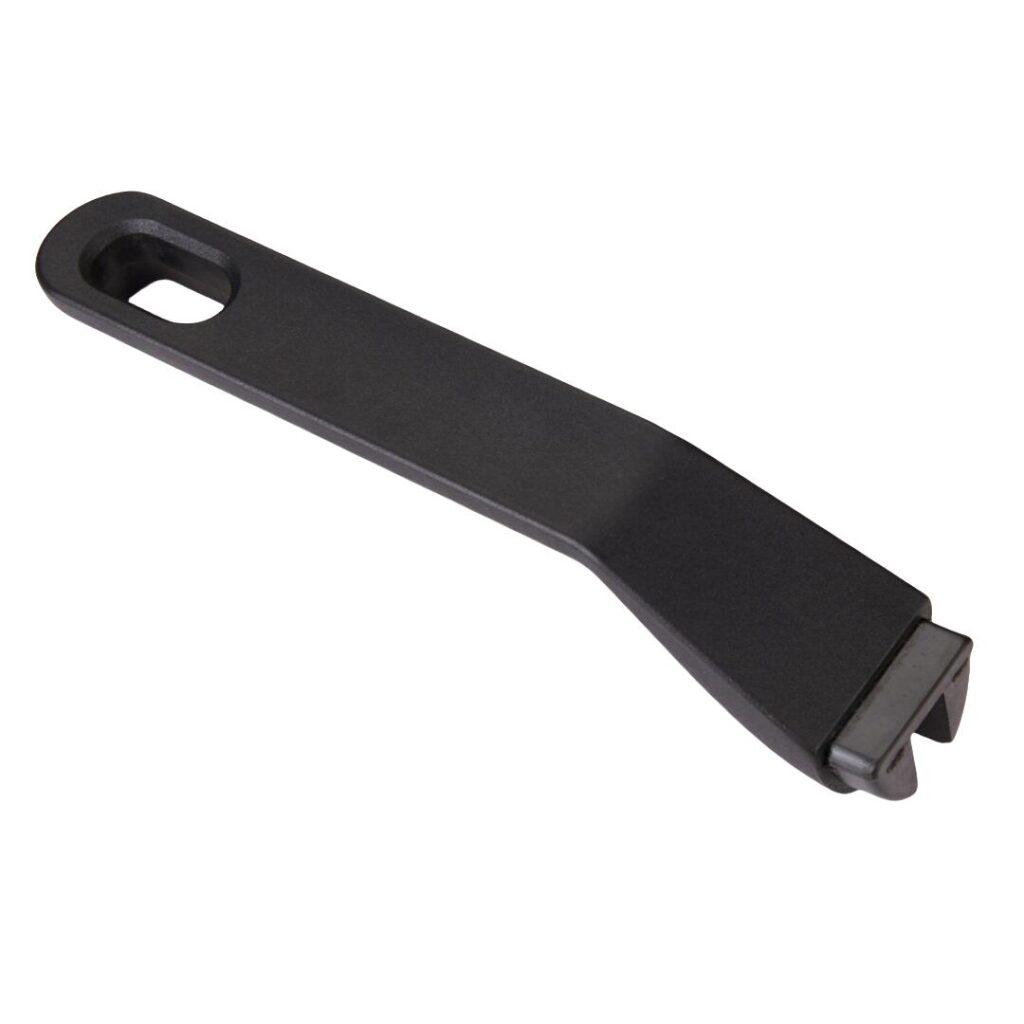

Bakelite cookware handle





SIZE:100mm-200mm

WEIGHT:100g-170g

MATERIALS:BAKELITE

APPLICATION:COOKWARE





  • Product Detail

A bakelite cookware handle is a compression moulded phenolic (PF2A2 or PF2A4-151J) grip for pots, pans and woks, rated 160–180°C continuous with special modified grades reaching 200–220°C. It is fixed to the vessel by screw or rivet, and the profile is moulded to your drawing. Orders start at 2,000 pcs, and each lot is checked against the EN 12983-1:2023 test standard before packing.

What is a bakelite cookware handle?

A bakelite cookware handle is a phenolic resin grip cured in a heated steel mould and fitted to a pot, pan or wok. The resin grade is PF2A2 or PF2A4-151J, pressed in a single cycle, so the grip and its mounting boss come out of the same cavity. The cured part does not soften again, which keeps the fit stable on the vessel.

How does it handle heat and load?

Heat resistance is the first property: the handle holds 160–180°C continuous, with special modified grades reaching 200–220°C, so a pot with this grip can go straight onto the stove without melting or warping. The reaction that cures the resin is permanent, so the same grip survives repeated heating and cooling without losing shape.

Load is the second property. A full pot, and a heavy cast iron pan in particular, puts a bending load on the grip, and a moulded phenolic body takes that load without cracking. The material also resists chemicals, so regular cleaning and cooking spills do not break the surface down.

Technical specifications

These values cover a PF2A2 or PF2A4-151J grip: a 160–180°C continuous rating, a fixed screw or rivet joint and a 2,000 pcs order level.

PropertyValue
MaterialPhenolic resin, PF2A2 or PF2A4-151J
Continuous heat160–180°C
Modified grade heat200–220°C
FormingCompression moulded, single cure cycle
MountingScrew-on or rivet-in
FitPots, pans, woks
Grip profileMoulded to the drawing
CleaningMild soap and water by hand
MOQ2,000 pcs
Lead time20–25 days for a full 20GP container quantity
Test standardEN 12983-1:2023

Which mounting and finish options are available?

Mounting is a fixed joint: a screw through the moulded boss, or a rivet through the vessel flange, with spacing taken from your drawing. Finish is set at the moulding stage, so the colour is pigmented into the resin or applied as paint over the pressed surface.

  • Screw-on mounting through the moulded boss.
  • Rivet-in mounting through the pot or pan flange.
  • Grip length, profile and angle moulded to the drawing.
  • Resin pigmented to a solid colour before pressing.
  • Paint applied over the moulded surface for a second colour.

How is it made and inspected?

Handles are pressed on 20+ moulding machines that run 70,000 pcs/day, and each lot is measured against the drawing and the EN 12983-1:2023 test standard before packing.

  1. Check the drawing for grip length, hole pattern and finish.
  2. Preheat the PF2A2 or PF2A4-151J powder and weigh the charge.
  3. Press the charge in the steel mould and hold until the section cures.
  4. Deflash the parting line and finish the grip surface.
  5. Measure the part against the drawing and EN 12983-1:2023.

Frequently asked questions

These four questions come up before a 2,000 pcs order of a PF2A2 cookware handle is set.

Which vessels can the handle fit?

It fits pots, pans and woks, including heavy cast iron bodies. Send the vessel drawing and we mould the grip to its length and angle.

Does the handle melt on a stove?

No. The rating is 160–180°C continuous with special modified grades reaching 200–220°C, and cured phenolic does not melt at all; it keeps its shape inside that window.

How should the handle be cleaned?

Clean with mild soap and water, then dry the surface. Keep strong chemicals off the grip, and store the cookware in a cool, dry place.

What is the minimum order and lead time?

MOQ is 2,000 pcs, with 20–25 days for a full 20GP container quantity. A sample is moulded first, so the drawing is confirmed before the lot runs.

Key takeaways

  • PF2A2 or PF2A4-151J phenolic, rated 160–180°C continuous, with special modified grades reaching 200–220°C.
  • Fixed screw-on or rivet-in joint for pots, pans and woks.
  • 2,000 pcs MOQ, 20–25 days for a full 20GP container quantity.

Ordering and delivery

Orders start at 2,000 pcs, and a full 20GP container quantity runs 20–25 days. We mould a sample from your vessel drawing first, then start production once you approve it. Send the drawing and target colour to sales@bshouseware.com.

Related parts: bakelite handle for cookware, cooking pot handle, bakelite pot handle, cookware handle manufacturer, and the bakelite handle range.

Request a sample or email sales@bshouseware.com with your vessel drawing.
