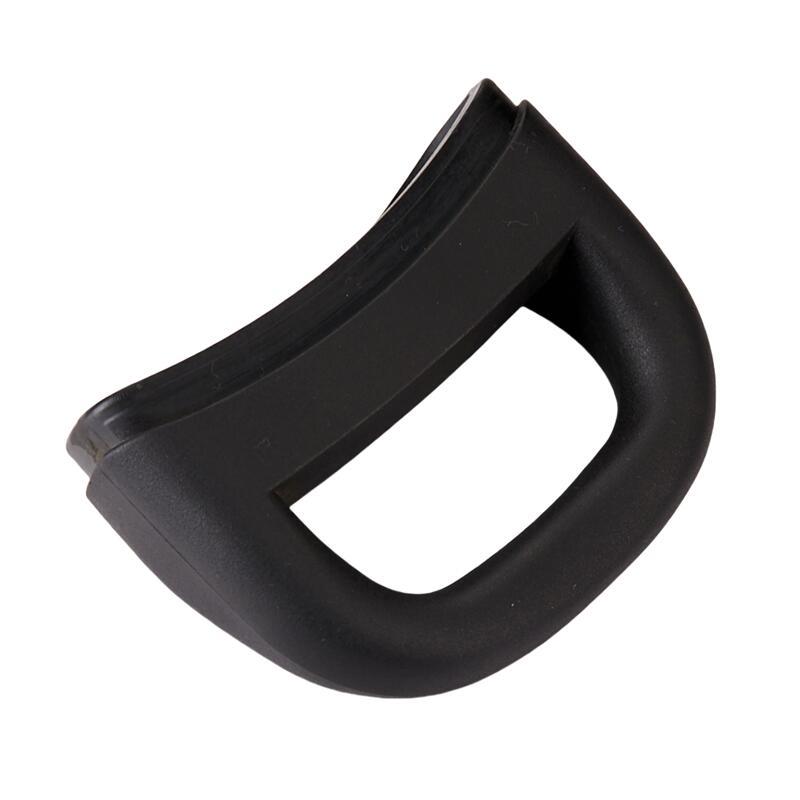

Bakelite Side Handle

Product Specifications

• SIZE: 100mm–150mm (grip length); extended reach options up to 200mm
• WEIGHT: 100g–160g (varies by bracket thickness and Bakelite grip profile)
• MATERIALS: Phenolic Resin (Bakelite) grip + iron or stainless steel (SS201/SS304) mounting bracket
• APPLICATION: Stockpot side handles, wok helper handles, large casserole handles, deep pot helper grips
• LOAD CAPACITY: Tested to ≥ 80 kg per handle pair (static load at 5× safety factor)
• MOUNTING: Rivet mount, screw mount, or weld mount — specify per your pot tooling
• MOQ: 500 pairs per SKU

Engineering & Assembly Insights

Why Dual-Material Handles Outperform Single-Material Bakelite for Large-Capacity Pots

Large-capacity cookware (≥ 8 liters) places unique structural demands on side handles that single-material Bakelite cannot fully meet:

Load scenario: A filled 15-liter stockpot weighs 17+ kg. The side handles experience cantilever bending moment every time the pot is lifted. Over repeated lifts, the Bakelite-to-metal interface of a single-material handle can develop micro-cracking at the highest-stress zone (the junction between the grip and the mounting foot).

The dual-material design solves this by giving each material a specific structural role:

• Steel bracket: Carries the tensile/compressive load from lifting — it is the structural spine
• Bakelite grip: Provides heat insulation and ergonomic grip surface — it sees no structural load

This load separation means the Bakelite grip never experiences tensile stress, eliminating the root cause of handle breakage in single-material designs.

Three Mounting Methods: Matching to Your Pot Construction

The steel bracket supports three attachment methods, each suited to different pot manufacturing processes:

Rivet mount — Permanent and vibration-resistant. The bracket is pre-punched with rivet holes; during assembly, solid rivets (or pop rivets) are driven through the bracket and pot wall. This is the strongest and most permanent attachment method. Used in commercial cookware where handles must not detach.

Screw mount — Field-replaceable and adjustable. The bracket has threaded inserts; during assembly, screws pass through the pot wall into the insert. This allows warranty serviceability — a damaged handle can be replaced without replacing the pot. Preferred by consumer product brands.

Weld mount — For stainless steel pot bodies only. The bracket is spot-welded directly to the pot wall. This creates a flush, seamless appearance with no visible fasteners — the cleanest aesthetic for premium cookware.

Specify your pot construction and assembly process at inquiry — Birss engineers will recommend the optimal mounting method.

Wok Handle Specific: Torsional Rigidity

Woks present a unique challenge: the eccentric weight distribution of a round-bottom wok (even when used on a flat burner) means the handle must resist twisting rotation around the attachment point, not just vertical lifting load.

Birss wok helper handles use a gusset-reinforced steel bracket that increases torsional rigidity by 40% vs. a standard flat bracket. This prevents handle spin — a common OEM complaint with budget wok helper handles that allows the wok to rotate on the handle axis during one-handed operation.

Factory & Supply Chain Strength

Your Custom Tooling Provider for Large-Capacity Cookware Side Handles

Birss Houseware operates in-house bracket stamping and Bakelite overmolding under one roof — no third-party bracket sourcing. This vertical integration means:

• Bracket material options: 201 SS (economical), 304 SS (for marine/humid environments), iron with powder coating (cost-effective)
• Custom reach lengths: Standard 100–150mm; extended 180–200mm for professional-grade stockpot lids
• Prototyping: 3D printed handle samples in 3–5 days for fit validation before tooling commitment
• MOQ: 500 pairs per SKU

Dual-Material vs. Single-Material Side Handle: Performance Comparison
